Universal Robots UR5¶

Docker image version Docker image size

This workspace provides a ROS 2 Humble environment for controlling Universal Robots UR5 manipulators. It includes the official Universal_Robots_ROS2_Driver, description packages, OnRobot RG2 gripper support, servo control, and pose tracking.

Please note that this workspace has only been tested on the UR5 (CB3 version). In theory, it can support other models with minor configuration adjustments; please feel free to modify the settings as needed for your specific use case.

Start Container¶

Make sure your system meets the system requirements and have followed the setup instructions before using this workspace.

Run the following commands in a Ubuntu desktop environment. If you are using a remote server, make sure you're using a terminal within a remote desktop session (e.g., VNC) instead of SSH (i.e., don't use ssh -X or ssh -Y).

cd ~/ros2-essentials/ur5_ws/docker
docker compose build
xhost +local:docker
docker compose up -d
# The initial build will take a while, please wait patiently.

If your user's UID is 1000, you may use docker compose pull instead of docker compose build.

The commands in the following sections assume that you are inside the Docker container:

# in a new terminal
docker exec -it ros2-ur5-ws bash

If the initial build failed, rebuild the workspace inside the container:

cd /home/ros2-essentials/ur5_ws
rm -rf build install
colcon build --symlink-install

To stop and remove the container:

docker compose down

Simulation with URSim (CB3)¶

To test without hardware, run URSim CB3 with the External Control URCap in Docker:

cd ~/ros2-essentials/ur5_ws/docker/ursim
docker compose up

This starts a UR5 simulator at 192.168.56.101 (VNC on port 5900, Web on 6080). The ports 5900 and 6080 are forwarded to localhost, please change them in docker/ursim/compose.yaml if those ports conflict with existing services. Open http://localhost:6080/vnc.html?host=localhost&port=6080 in your browser to access the URSim interface.

⚠️ Important: If you plan to switch to the physical robot, you must run docker compose down to remove the virtual network first. Failing to do so will cause IP address conflicts.

URSim provides an interface identical to the physical robot, making it ideal for rapid testing. However, please note that unlike Gazebo or IsaacSim, URSim does not possess a realistic physics engine. Therefore, it is not suitable for simulations requiring high physical fidelity.

Regarding the RG2 gripper: although it is not explicitly modeled in URSim, our control script operates via Digital I/O. Consequently, there is no need to disable the gripper configuration when running URSim; the code will execute without errors.

Since URSim aims to faithfully replicate the real robot's behavior, you should follow all the steps outlined in the subsequent sections, including calibration and bring-up.

Setup Robot¶

For URSim users, the settings are already pre-configured in the docker compose file, so you can skip this step.

Please refer to the official installation guide. If the robot has been configured previously, you can typically skip this step.

For network setup, please refer to this section for network configuration.

Robot Calibration¶

To improve accuracy, run the calibration correction and save the result to the workspace description config:

cd /home/ros2-essentials/ur5_ws
./scripts/ur5_calibration.sh

You only need to run this once for each robot. This creates default_kinematics.yaml which is required for the subsequent steps.

Bring Up Robot¶

Use the script:

cd /home/ros2-essentials/ur5_ws
./scripts/ur5_bringup.sh

Or run the launch file directly:

ros2 launch ur_robot_driver ur_control.launch.py \
    ur_type:=ur5 \
    use_rg2_gripper:=true \
    robot_ip:=192.168.56.101 \
    launch_rviz:=true

Set use_rg2_gripper parameter to false to disable the RG2 gripper.

Quick test for gripper actuation:

# true = open, false = close
ros2 topic pub --once /rg2/command std_msgs/msg/Bool "{data: true}"

After bringing up the robot, make sure to click Play in the UR interface to start the control loop.

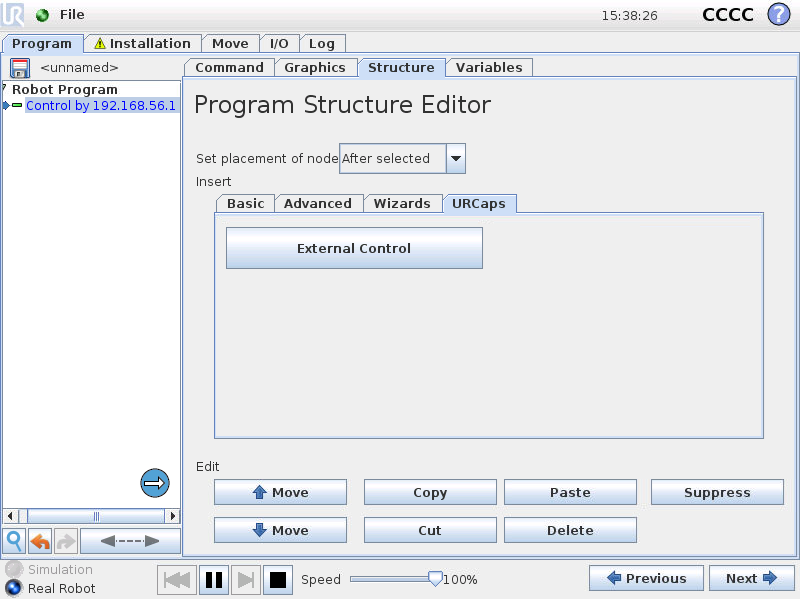

In the UR interface, go to Home > Program Robot > Empty Program > Program > Structure > URCaps > External Control and then click the Play button.

The UR interface control program will automatically stop if the ROS2 bring up node is stopped or crashes for safety reasons. If that happens, simply restart the bring up node and click Play again.

Launch MoveIt 2¶

Launch MoveIt 2 for a quick test. You can move the arm by dragging the end-effector (EE) to a target position in RViz2, then clicking Plan & Execute.

ros2 launch ur_moveit_config ur_moveit.launch.py \
    launch_rviz:=true \
    use_rg2_gripper:=true

Ensure the robot driver is already running before testing.

Servo Control¶

The ur_servo_control package provides a simple example for controlling end-effector (EE) velocity. Please ensure the robot driver is launched before testing.

ros2 launch ur_servo_control ur_servo.launch.py

You can control the robot arm by publishing target velocities to the /servo_node/delta_twist_cmds topic.

For an implementation example within a ros node, refer to ur5_ws/src/ur_servo_control/ur_servo_control/ur_servo_control.py. Please be careful when selecting the reference frame. Use the following command to launch it:

ros2 launch ur_servo_control ur_servo_control.launch.py

The default velocities above are set to 0, you can modify the linear/angular velocities (twist_msg.twist.{linear|angular}.{x|y|z}) in publish_servo_command_callback in ur5_ws/src/ur_servo_control/ur_servo_control/ur_servo_control.py. But note that a constant velocity command will cause the robot to keep moving, which may be dangerous for real robot control (but fine for URSim testing).

Pose Tracking¶

The ur_pose_tracking package provides an interface for controlling the end-effector (EE) position.

# In terminal 1 (Launch the servo node):
ros2 launch ur_servo_control ur_servo.launch.py
# In terminal 2:
ros2 launch ur_pose_tracking ur_pose_tracking.launch.py

You can control the robot arm by publishing target pose to the /target_pose topic.

For application integration, it is recommended to refer to the servo control implementation within the ros node. To perform a quick test, please use the following command:

ros2 topic pub --once /target_pose geometry_msgs/msg/PoseStamped "{header: {frame_id: 'world', stamp: {sec: 0, nanosec: 0}}, pose: {position: {x: -0.3, y: 0.0, z: 0.5}, orientation: {x: -0.35, y: 0.01, z: 0.93, w: -0.05}}}"

Note: This implementation does not account for singularities or collision avoidance and only supports linear paths between points. Consequently, it is ideal for high-density trajectory points. If your input points are sparse or require complex path planning and obstacle avoidance, please use the MoveIt planner instead.

Troubleshooting¶

If you encounter issues on reproducing the examples above, consider remove all containers (docker compose down for URSim and workspace) and try again.
